Collect signals from a mobile app

Collect signals for Android

Perform the following tasks in sequential order to use Risk Management in the host application.

This tutorial includes the following tasks:

• Add risk Management dependencies to the project
• Add permissions
• Create configuration objects
• Certificate pinning
• Initialize Risk Management SDK
• Start prefetch signals
• Request the prefetch status
• Request and process visitID
• Clear transaction resources
• Stop prefetch signals

Add Risk Management dependencies to the project

Use the set of files in the package folder to perform the following steps:

1. Clone the github repository from https://github.com/gemalto/idcloud-fpp-tutorials-android.

2. Create a libs folder in idcloud-fpp-tutorials-android/01-ProjectSetup/app.

3. Copy the debug version of Risk Management from the external/debug package to the 01-ProjectSetup/app/libs/debug folder.

4. Copy the release version of Risk Management from the external/release package to the 01-ProjectSetup/app/libs/release folder.

5. Copy all AAR files in 3pty and paste them in the 01-ProjectSetup/app/libs/3pty folder.

6. Copy proguard-project.txt (the Proguard configuration file) from external/proguard to 01-ProjectSetup/app.

7. Add the native dependency in the app/build.gradle file.

   sourceSets {
           debug {
               jniLibs.srcDirs += ['libs/debug']
           }

           release {
               jniLibs.srcDirs += ['libs/release']
           }
   }


8. Add all the library dependencies in the app/build.gradle file. Search for PLACEHOLDER - Jar + Aar Dependency in 01-ProjectSetup App.

   dependencies {
       // Add Risk Management Platform java library
       releaseImplementation files('libs/release/GAHRiskEngine.jar')
       debugImplementation files('libs/debug/GAHRiskEngine.jar')

       // 3pty dependencies
       implementation fileTree(include: "*.aar", dir: "libs/3pty")

       // Add JNA dependency
       api 'net.java.dev.jna:jna:5.5.0@aar'
   }


Add permissions

To enable Risk Management to work properly, the following permissions are required in the manifest file:

<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
<uses-permission android:name="android.permission.BLUETOOTH"/>
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.REQUEST_INSTALL_PACKAGES" />
<uses-permission android:name="android.permission.CHANGE_NETWORK_STATE" />

<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.READ_PHONE_NUMBERS" />

For details on the permissions needed for different signals, see Risk Management permissions.

Create configuration objects

There are different configuration objects to configure for Risk Management.

These two configuration objects are mandatory:

• GAHCoreConfig: A mandatory configuration that initializes the core components of Risk Management.

• GAHGemaltoSignalConfig: A mandatory configuration that initializes all parameters related to Thales signals.

The remaining configurations are optional and used for proprietary signal groups.

• GAHBSecConfig is specific to the proprietary signal group BehavioSec. Use this configuration if you want to enable the BehavioSec group signal collection for the risk calculation.

• GAHTMXConfig is specific to the proprietary signal group ThreatMetrix. Use this configuration if you want to enable the ThreatMetrix group signal collection for the risk calculation.

The following tables list the configurable parameters from the different configuration classes of Risk Management.

GAHCoreConfig object

GAHGemaltoSignalConfig object

Builder design pattern

All the configuration classes follow the builder design pattern. Mandatory parameters must be passed to the constructor of the builder, and optional parameters must be set through setters. After all the parameters are set, call build(). Subsequently, the parameters are considered.

Search for PLACEHOLDER - Configuration in placeholder for configuration in Sample App

// Setup core config, set other optional parameters, if required
GAHCoreConfig coreConfig = new GAHCoreConfig.Builder(getApplicationContext(), riskEngineUrl)
    .build();

//Setup Signal config, set other optional parameters, if required
GAHGemaltoSignalConfig signalConfig = new GAHGemaltoSignalConfig.Builder()
    .build();

Certificate pinning

Certificate pinning is used to check that the risk engine back-end server’s certificate matches a known copy of that certificate at the application.

To use certificate pinning, the application sends the array of X509Certificate to Risk Management’s GAHCoreConfig and sends the GAHCoreConfig object to initialize().

You can also configure the TLS connection settings. Risk Management takes care of the default configurations if this is not set from the application.

//Add the certificates to GAHCoreConfig and pass to initialize
* Set certificate array to GAH Core config */
final X509Certificate[] certificates = new X509Certificate[2];
certificates[0] = AppUtils.getCertificate(this, R.raw.digital_cloud_cert_parent_der);
certificates[1] = AppUtils.getCertificate(this, R.raw.digital_cloud_cert_child_der);
coreConfigBuilder = coreConfigBuilder.setSecureConnectionCertificates(certificates);

if (BuildConfig.DEBUG)
{
    coreConfigBuilder = coreConfigBuilder.setSecureConnectionPermits(new GAHCoreConfig
            .Permit[]{GAHCoreConfig.Permit.INSECURE_COMMUNICATIONS});
}

The following code snippet shows how to get a certificate in the X509Certificate format. It is assumed that the certificate file is placed in the res/raw folder:

public static X509Certificate getCertificate(Context context, int resId)
{
    X509Certificate certificate = null;
    InputStream caInput = null;

    try {
        final CertificateFactory factory = CertificateFactory.getInstance("X.509");
        caInput = new BufferedInputStream(context.getResources().openRawResource(resId));
        certificate = (X509Certificate) factory.generateCertificate(caInput);
        Log.i(TAG, "ca=" + (certificate).getSubjectDN());
    } catch (final CertificateException exception) {
        Log.e(TAG, exception.getMessage());
    }
    finally {
        if (caInput != null) {
            try {
                caInput.close();
            } catch (IOException ex) {
                Log.e(TAG, ex.getMessage());
            }
        }
    }
    return certificate;
}

Initialize the Risk Management SDK

Initialize the SDK by passing the mandatory GAHCoreConfig, GAHGemaltoSignalConfig configurations and optionals GAHTMXConfig, GAHBSecConfig configuration. If GAHTMXConfig and GAHBSecConfig are not set, these signal groups are not initiated, and no signal collection is made under them.

During the initialization, the Risk Management SDK internally performs the initialization and signal collection of proprietary SDKs such as ThreatMetrix. When the corresponding initialization and registration are successful, the proprietary SDK signals are collected and stored in cache until SignalCacheTime (configurable parameter in GAHGemaltoSignalConfig), so that these signals are readily available during the next events, such as Login and Add beneficiary.

Search for PLACEHOLDER - initialization in the placeholder for initialization in the sample app.

// Pass configuration to core.
GAHCore.initialize(coreConfig, signalConfig);

Start prefetch signals

Prefetching signals means collecting and storing the signal values in the cache for SignalCacheTime (configurable parameter in GAHGemaltoSignalConfig), so that collection time is reduced during the actual transaction action.

This method can either be called from the UI or from a non-UI thread. Basically, signals, which are time-consuming to collect, are identified and prefetched.

Currently, prefetching collects and caches a few of the signals such as:

• Location signals: Sends a request to the operating system to get the latest location coordinates.
• ThreatMetrix signal: Sends a request to TMX SDK for a new sessionID.

It is recommended to call this method during the launch of a screen containing a transaction event such as Login or Add Beneficiary, so that signals are cached at an early stage before the actual transaction is made.

Search for PLACEHOLDER - Prefetch in the placeholder for prefetch in the sample app.

// Start Signal prefetch
GAHCore.startPrefetchSignals();

Request the prefetch status

Ensure that the signals mentioned in the initialize the Risk Management SDK task (Location, ThreatMetrix) are collected and cached before requesting the visitID from Risk Management.

This can be ensured by requesting for a status callback using the requestPrefetchStatus() method. Callback is invoked at the end of SignalPrefetchTime (configurable in GAHGemaltoSignalConfig class). The error status is received from the callback if all signals are not collected and cached within SignalPrefetchTime.

Risk Management has an internal default timeout of 5 seconds (configurable).

• If all signals are collected, then the status is set as GAHErrorCodes.PREFETCH_STATUS_OK.
• If any of the signals cannot be collected, then the status is GAHErrorCodes.PREFETCH_STATUS_PARTIAL_OK.
• If no signal is collected, then status is set as GAHErrorCodes.PREFETCH_STATUS_FAILURE.

Failure and partial_ok status can occur due to various reasons, such as:

• Network latency
• Runtime permission is not granted
• GPS feature is not enabled

Ensure all integration steps are followed and the device is connected to the internet with feasible speed to avoid the erroneous condition.

If the signal does not have a value in the cache or if it cannot be collected in SignalPrefetchTime, then a callback error is invoked.

Search for PLACEHOLDER - Prefetch Status in the placeholder for the prefetch status check in the sample app.

// Listen to prefetch status
GAHCore.requestPrefetchStatus(this.processPrefetchStatusResponse);

Request and process the visitID

The application requests the visitID from the Risk Management SDK. This visitID can be forwarded by the application back end to the Risk Management back end to receive the decision based on the risk calculated from various signals that are collected by the Risk Management SDK.

Internally, this method fetches all the requested signal values as configured during initialization, then sends the signal JSON to the Risk Management back end and gets the visitID that corresponds to the set of signals present in the request JSON.

The signals mentioned in the initialize the Risk Management SDK task are taken from the cache, and all other signals are collected freshly every time the requestVisitID() call is made.

If the cached signal timestamp is older than SignalCacheTime, the signals cache is discarded and a request is made to collect the new values.

As a new request to collect the signal to be cached is time-consuming, it is recommended to call the prefetch function to ensure that signals are cached before making the call to requestVisitID().

To get the visitID, the application must call the requestVisitID method. Internally, this method runs on a separate worker thread.

The GAHResponseCallback interface is used to get the result from Risk Management:

• If Risk Management successfully fetches the visitID, the application gets the callback in the success method with the visitID.

• If Risk Management fails to get the visitID, it returns the error code and error message in the error callback method.

The requestVisitID method is called to decide the next step of every event, such as:

• Login
• Add beneficiary
• Fund transfer

Search for PLACEHOLDER - Request Visit Id in the sample app.

// Make sure that we have all signals prefetched.
if (statusCode == GAHErrorCodes.PREFETCH_STATUS_OK) {
// With all signals in place. Request Visit ID.
GAHCore.requestVisitID(new GAHResponseCallback() {
    @Override
    public void success(String visitID) {
    processVisitIDResponse(true, visitID);
    }

    @Override
    public void error(int statusCode, String statusMsg) {
    processVisitIDResponse(false, statusMsg);
    }
});
}

Clear transaction resources

This method is called after every transaction to clear the transaction resources used in Risk Management.

A transaction may be an action in the application such as Login or Add beneficiary.

Search for PLACEHOLDER - Clear Transaction Resources in the placeholder for clearing transaction resources in the sample app.

// Clear transaction resources
GAHCore.clearTransactionResources();

Stop prefetch signals

Stopping the prefetching of signals results in the termination of the background process of storing values in the cache.

This method can either be called from the UI (main) or a non-UI (background) thread.

Search for PLACEHOLDER - Stop Prefetch in the placeholder for stopping prefetch in the sample app.

//Stop signal Prefetch
GAHCore.stopPrefetchSignals();

Collect signals for iOS

Perform the following tasks in sequential order to use the Risk Management in the host application.

This tutorial includes the following tasks:

• Add Risk Management and TrustDefender dependencies to your project
• Add permissions
• Create configuration objects
• Certificate pinning
• Initialize the Risk Management SDK
• Start prefetch signals
• Request the prefetch status
• Request and process the visitID
• Clear transaction resources
• Stop prefetch signals

Add Risk Management and TrustDefender dependencies to your project

A set of files are stored in the package folder for you to perform the following steps:

1. Clone the github repository from https://github.com/gemalto/idcloud-fpp-tutorials-ios and name the project Risk Management Demo.

2. Create a Frameworks folder in Risk Management Demo.

3. Copy the Debug version of GAHRiskEngine.xcframework from the external/Debug package to the Frameworks/GAHRiskEngine/Debug folder.

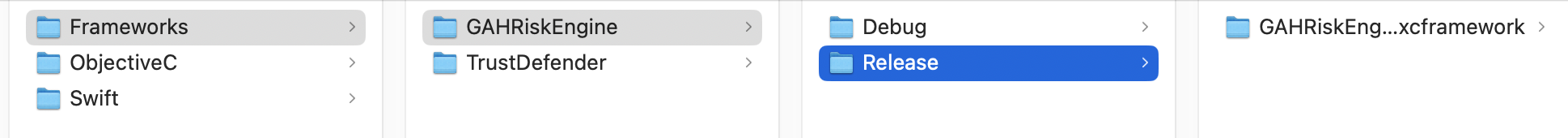

4. Copy the Release version of GAHRiskEngine.xcframework from the external/Release package to the Frameworks/GAHRiskEngine/Release folder.



5. Copy TrustDefender.framework from the package path 3pty to the Frameworks/TrustDefender folder.

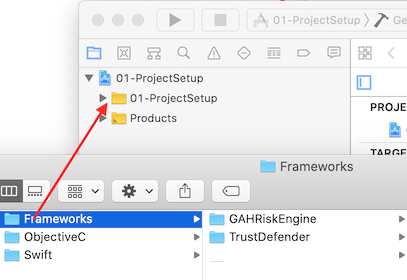

6. Open the Risk Management Demo/ObjectiveC/01-ProjectSetup/01-ProjectSetup.xcodeproj. Drag the entire new Frameworks folder and drop it in the Xcode project.

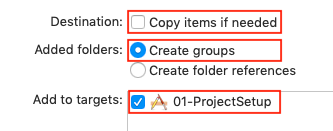

7. From the pop-up window, clear the Copy items if needed box, and then select Create Groups and your application target.



   The final project structure is as follows:



8. In Build Settings > Search Paths > Framework Search Paths, update the framework search paths based on the build configuration from the respective folders of the frameworks, so that the debug and release versions of the app use the correct binaries.







   //:configuration = Debug
   FRAMEWORK_SEARCH_PATHS = $(inherited) "$(SRCROOT)/../../Frameworks/GAHRiskEngine/Debug/GAHRiskEngine.xcframework"
   "$(SRCROOT)/../../Frameworks/TrustDefender/TrustDefender.framework"

   //:configuration = Release
   FRAMEWORK_SEARCH_PATHS = $(inherited) "$(SRCROOT)/../../Frameworks/GAHRiskEngine/Release/GAHRiskEngine.xcframework"
   "$(SRCROOT)/../../Frameworks/TrustDefender/TrustDefender.framework"


9. Set TrustDefender.framework as the embedded frameworks:

   • In Xcode 10.4 and earlier, add the TrustDefender framework to the General > Embedded Binaries tab.
   • In Xcode 11, set the TrustDefender framework from Do not Embed to Embed & Sign in General > Frameworks, Libraries and Embedded Content.

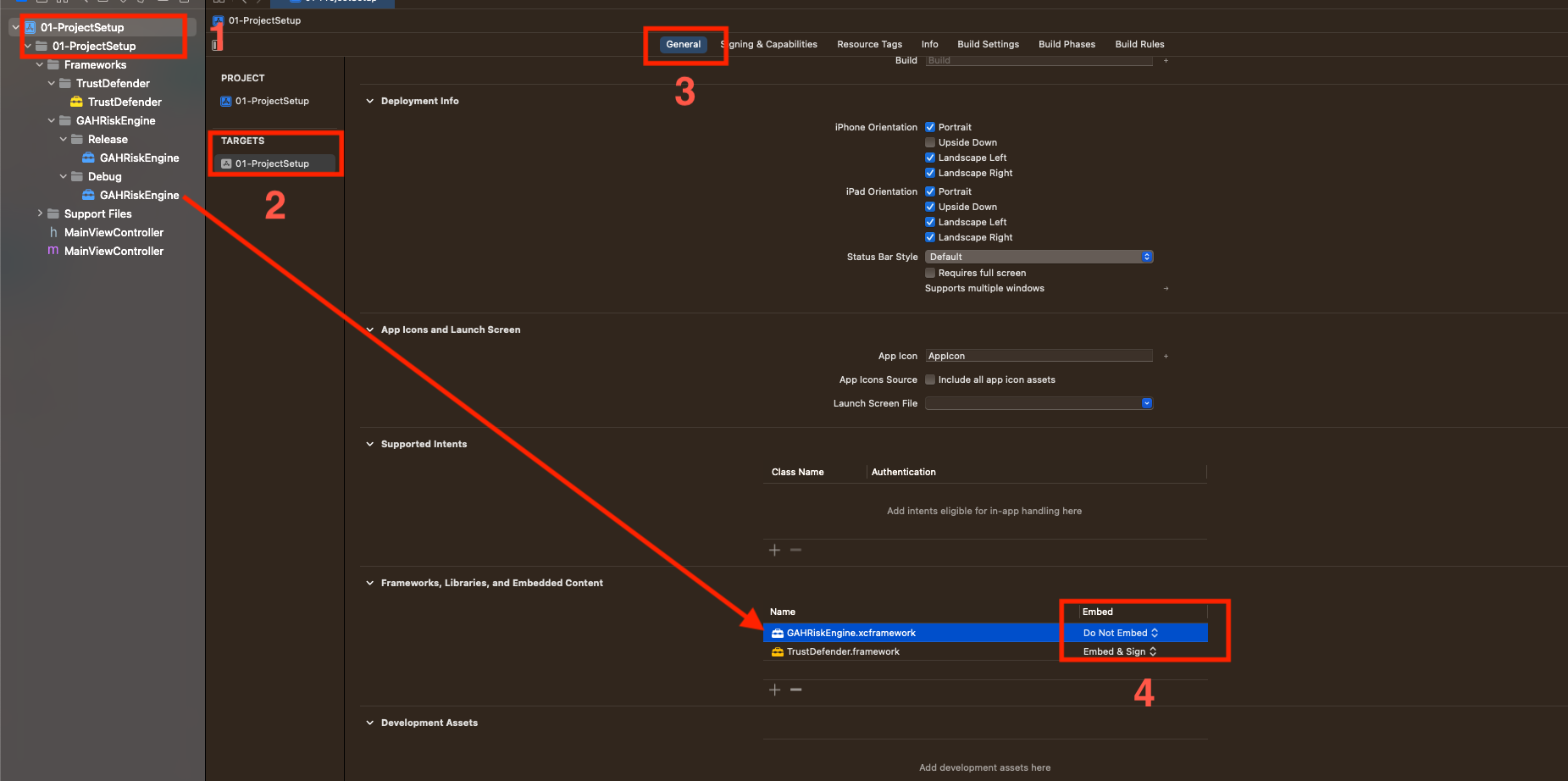

10. Make sure GAHRiskEngine.xcframework as the Do Not Embed frameworks:

    • In Xcode 10.4 and earlier, add the GAHRiskEngine xcframework to the General > Embedded Binaries tab.
    • In Xcode 11, set the GAHRiskEngine xcframework from Do Not Embed in General > Frameworks, Libraries and Embedded Content.



11. Remove unwanted architectures from the TrustDefender framework:

    • TrustDefender.framework

      By default, the TrustDefender.framework embedded in the application contains all the architectures:

      • For Device: arm64, armv7

      • For Simulator: i386, x86>

      Since simulator architectures are not necessary when building the device, these architectures can be removed.

    • Load Strip_Unused_Architectures.sh to the Xcode project using the following steps:

      1. Drag the Strip_Unused_Architectures.sh file from the deliverable package example/objc and drop it in the Xcode project.



      2. In the Build Phases tab, add a new New Run Script Phase and add this script to the console:

         /bin/sh Strip_Unused_Architectures.sh





      3. Before you can build and run the project, verify that the simulator architectures are removed and the TrustDefender framework is in your final .app file in

         {ProductName}.app/Frameworks/TrustDefender.framework/TrustDefender

         Run the LIPO command via a terminal and observe the required architectures:

         $ lipo -info {ProductName}.app/Frameworks/TrustDefender.framework/TrustDefender

         Output:

         Architectures in the fat file {ProductName}.app/Frameworks/TrustDefender.framework/TrustDefender are: arm64

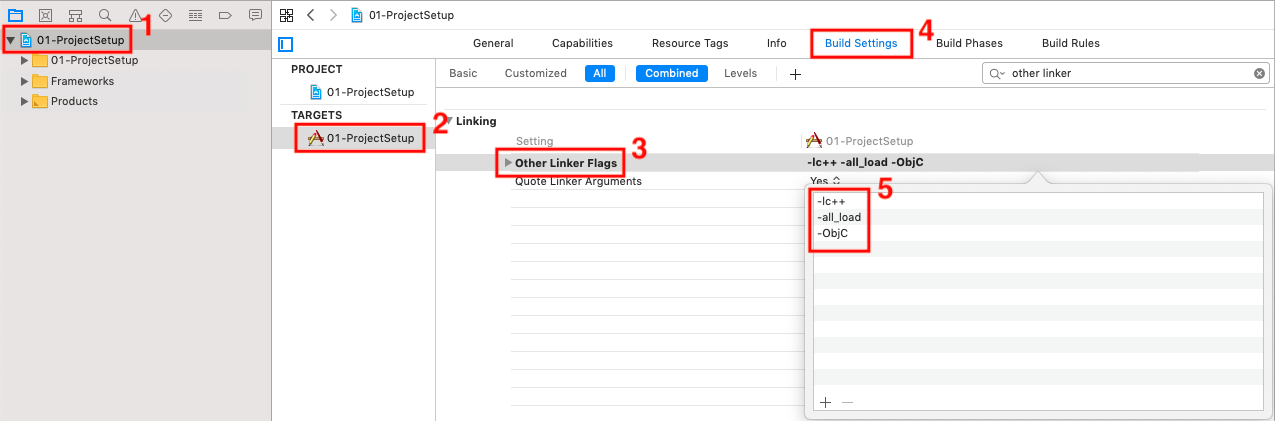

12. To update the linker flags, add the link flag from Build Settings > Other Linker Flags.



    Where:

    OTHER_LDFLAGS = -lc++ -all_load -ObjC

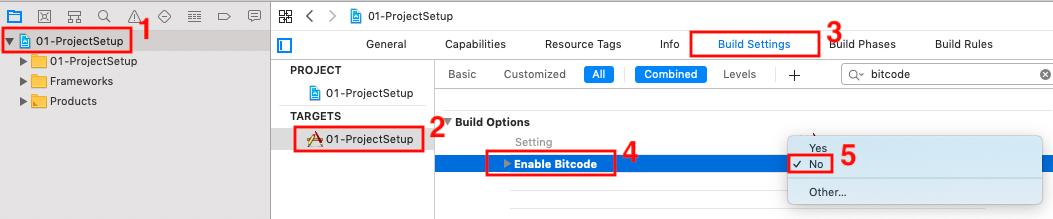

13. Disable the bitcode. Because Risk Management does not support bitcode, a compilation error is generated when the application tries to use it.



    Where:

    ENABLE_BITCODE = NO

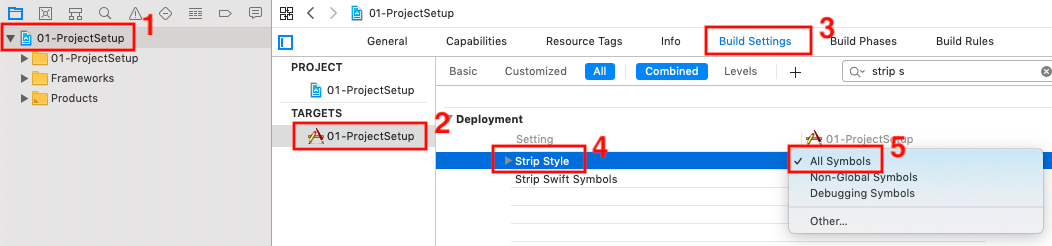

14. Set the Strip Style to Non-Global Symbols or All Symbols so that all internal symbols or all symbols are removed to reduce symbol visibility. This is shown in the following figure:



    Where:

    STRIP_STYLE = all

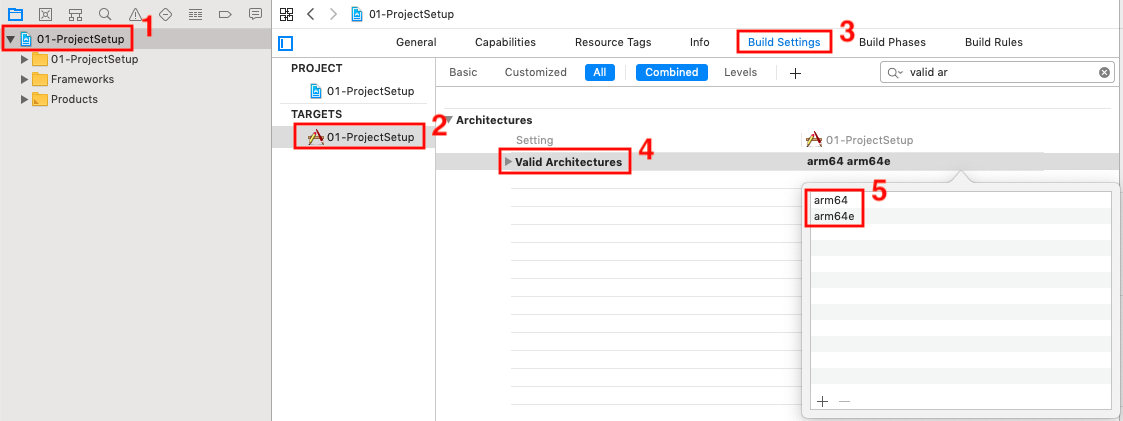

15. Set the valid architectures. Risk Management supports only arm64 architectures (see Risk Management variants), therefore a compilation error is generated when the application is built for armv7 architecture.



    Where:

    VALID_ARCHS = arm64 arm64e

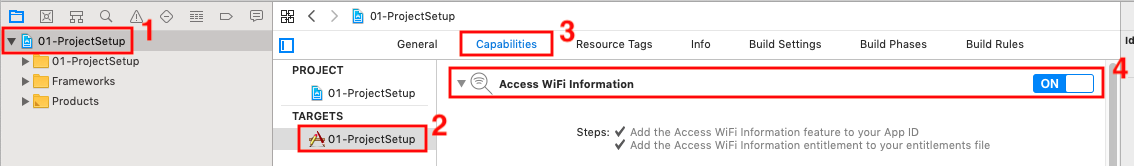

16. Enable the Wi-Fi access capability settings for the application in Xcode, to get the network information for a specific network interface. If the device uses Wi-Fi, it requires the Access WiFi Information capability to get the Wi-Fi information.



Add permissions

Add the required permissions in the Info.plist project file to allow Risk Management to collect all the signals.

For details on the permissions needed for different signals, see Risk Management permissions.

1. Select Info.plist from the application and click Add,

2. Select the required option from the list.

   Key	Description	iOS version
   NSLocationAlwaysUsageDescription	Specifies the reason for your app to access the user’s location information at all times.	8.0+
   NSLocationWhenInUseUsageDescription	Specifies the reason for your app to access the user’s location information while your app is in use.	8.0+
   NSLocationAlwaysAndWhenInUseUsageDescription	Specifies the reason for your app to access the user’s location information at all times and supports iOS 11 and later.	11.0+

The code snippet for displaying the location permission pop-up window is as follows:

Code placeholder for permissions

/* This triggers the popup to give permission to access location while using the app
Location is one of the signal category which is collected and used for risk calcualation
*/
- (void)getUserAccessPermissionToUseLocationService{
    self.locationManager = [CLLocationManager new];
    [_locationManager setDelegate:self];
    [_locationManager requestWhenInUseAuthorization];
}

/* This triggers the popup to give permission to access location
while using the app Location is one of the signal category which
is collected and used for risk calcualation
*/
func getUserAccessPermissionToUseLocationService() {
    self.locationManager = CLLocationManager.init()
    self.locationManager!.delegate = self
    self.locationManager!.requestWhenInUseAuthorization()
}

Create configuration objects

There are different configuration objects to be configured for Risk Management.

These two configuration objects are mandatory:

• GAHCoreConfig: This mandatory configuration is used to initialize the core components of Risk Management.

• GAHGemaltoSignalConfig: This mandatory configuration is used to initialize all parameters related to Thales signals.

The remaining configurations are optional and are used for proprietary signal groups:

• GAHBSecConfig: This configuration is specific to the proprietary signal group BehavioSec. Use this configuration if you want to enable the BehavioSec group signal collection for the risk calculation.

• GAHTMXConfig: This configuration is specific to the proprietary signal group ThreatMetrix. Use this configuration if you want to enable the ThreatMetrix group signal collection for the risk calculation.

The following tables list the configurable parameters from the different configuration classes of Risk Management.

GAHCoreConfig object

GAHGemaltoSignalConfig object

// Setup core config, set other optional params, if required
GAHCoreConfig *coreConfig = [GAHCoreConfig sharedConfigurationWithUrl:kRiskEngineURL];

// Gemalto Signal collection is mandatory.
GAHGemaltoSignalConfig *signalConfig = [GAHGemaltoSignalConfig sharedConfiguration];

// Setup core config, set other optional params, if required
let coreConfig = GAHCoreConfig.sharedConfiguration(withUrl: riskEngineURL)!

// Gemalto Signal collection is mandatory.
let signalConfig = GAHGemaltoSignalConfig.sharedConfiguration()!

Certificate pinning

Certificate pinning is used to check that the risk engine back-end server’s certificate matches a known copy of that certificate at the application.

To use certificate pinning, the application sends the X509Certificate array to Risk Management’s GAHCoreConfig and sends the GAHCoreConfig object to initialize().

You can also configure the TLS connection settings. Risk Management takes care of the default configurations if this is not set from the application.

Code placeholder for configuration

/* Set certificate array to GAH Core config */
GAHCoreConfig *reConfig = [GAHCoreConfig getsharedConfigManagerObject];
GAHTLSConfiguration *tlsConfiguration = [GAHTLSConfiguration new];

#ifdef DEBUG
[tlsConfiguration setHostnameMismatchAllowed:YES];
[tlsConfiguration setSelfSignedCertAllowed:YES];
[tlsConfiguration setInsecureConnectionAllowed:YES];
#else
[tlsConfiguration setSelfSignedCertAllowed:YES];
#endif

NSString *pathToCert = [[NSBundle mainBundle]pathForResource:@"Thales_eziocloud" ofType:@"cer"];
NSData *localValidCertificate = [NSData dataWithContentsOfFile:pathToCert];

[reConfig GRESTLSConfiguration:@[localValidCertificate] withRESDKTLSConfiguration:tlsConfiguration];

/* Set certificate array to GAH Core config */

let reConfig:GAHCoreConfig = GAHCoreConfig.getsharedConfigManagerObject()
var tlsconfiguration:GAHTLSConfiguration = GAHTLSConfiguration.init()

#if DEBUG

tlsconfiguration.hostnameMismatchAllowed = true
tlsconfiguration.selfSignedCertAllowed = true
tlsconfiguration.insecureConnectionAllowed = true

#else

tlsconfiguration.selfSignedCertAllowed = true
#endif

let pathToCert = Bundle.main.path(forResource: "Thales_eziocloud", ofType: "cer")
let localValidCertificate = NSData.init(contentsOfFile: pathToCert!)

reConfig.grestlsConfiguration([localValidCertificate!] as [Any], withRESDKTLSConfiguration: tlsconfiguration)

For details on the ATS setup required for certificate pinning, see the app transport configuration.

Initialize the Risk Management SDK

To initialize the SDK, pass the GAHCoreConfig, GAHSignalConfig mandatory configurations and GAHTMXConfig and GAHBSecConfig optional configurations. If GAHTMXConfig and GAHBSecConfig are not set, these signal groups are not initiated, and no signal collection is made under them.

During initialization, the Risk Management SDK internally performs the initialization and signal collection of proprietary SDKs, such as ThreatMetrix. When the corresponding initialization and registration are successful, the proprietary SDK signals are collected and stored in the cache until the SignalCacheTime (a configurable parameter in GAHGemaltoSignalConfig), so that these signals are readily available in the next events, such as Login and Add beneficiary.

Code placeholder for initialization

// Pass configuration to core.
[GAHCore initialize:[NSSet setWithObjects:coreConfig, signalConfig, nil]];

// Pass configuration to core.
GAHCore.initialize([coreConfig, signalConfig])

Start prefetch signals

Prefetching signals means collecting and storing signal values in the cache for the SignalCacheTime (a configurable parameter in GAHGemaltoSignalConfig), so that the collection time is reduced during the actual transaction action.

This method can either be called from the UI or from a non-UI thread. Signals that are time-consuming to collect are identified and prefetched.

Currently, prefetching collects and caches a few of the signals, such as:

• Location signals: Sends a request to the operating system to get the latest location coordinates.

• Browser signal (iOS only): Sends a request to the operating system to get the browser agent string.

• ThreatMetrix signal: Sends a request to the TMX SDK for a new sessionID.

It is recommended to call this method during the launch of a screen containing a transaction event, such as Login and Add beneficiary, so that signals are cached at an early stage before the actual transaction is made.

Code placeholder for prefetch

// Start Signal prefetch
[GAHCore startPrefetchSignals];

// Start Signal prefetch
GAHCore.startPrefetchSignals()

Request the prefetch status

Ensure that the signals mentioned in the initialize the Risk Management SDK task (Location, Browser, ThreatMetrix) are collected and cached before requesting the visitID from Risk Management.

This can be ensured by requesting for a status callback using the requestPrefetchStatus() method. Callback is invoked at the end of the SignalPrefetchTime (configurable in the GAHGemaltoSignalConfig class). The error status is received from the callback if all signals are not collected and cached within the SignalPrefetchTime.

Risk Management has an internal default timeout of five seconds (configurable).

• If all signals are collected then the status is GAHErrorCodes.PREFETCH_STATUS_OK.
• If any of the signals could not be collected then the status is GAHErrorCodes.PREFETCH_STATUS_PARTIAL_OK.
• If no signal was collected then the status is GAHErrorCodes.PREFETCH_STATUS_FAILURE.

Failure and partial_ok status can occur due to various reasons, such as:

• Network latency
• Runtime permission is not granted
• GPS feature is not enabled

Ensure that all the integration steps are followed and the device is connected to the internet with reasonable speed to avoid the erroneous condition.

Code placeholder for prefetch status

// Listen to prefetch status
[GAHCore requestPrefetchStatus:^(NSInteger statusCode, NSString *statusMessage) {
    [self processPrefetchStatusResponse:statusCode statusMessage:statusMessage];
}];

// Listen to prefetch status
GAHCore.requestPrefetchStatus { (statusCode: Int, statusMessage: String?) in
    self.processPrefetchStatusResponse(statusCode, statusMessage)
}

Request and process the visitID

The application requests the visitID from the Risk Management SDK. The application back end forwards this visitID to the Risk Management back end to receive the decision based on the risk calculated from various signals that the Risk Management SDK collects.

Internally, this method fetches all the requested signal values as configured during initialization, sends the signal JSON to the Risk Management back end, and gets the visitID corresponding to the set of signals present in the JSON request.

The signals mentioned in the initialize the Risk Management SDK task are taken from the cache and all other signals are collected freshly every time the requestVisitID() call is made.

If the cached signal timestamp is older than SignalCacheTime, the signals cache is discarded and a request is made to collect the new values.

Because a new request to collect the signal to be cached is time-consuming, it is recommended to call the Prefetch function to ensure that signals are cached before making the call to requestVisitID().

To get the visitID, the application must call the requestVisitID method. Internally, this method runs on a separate worker thread.

The GAHResponseCallback interface is used to get the result from Risk Management.

• If Risk Management successfully fetches the visitID, the application gets the callback in the success method with the visitID.

• If Risk Management fails to get the visitID, it returns the error code and error message in the error callback method.

The requestVisitID method is called to decide the next step of every event such as Login or Add beneficiary.

Code placeholder for request visit ID

// Make sure that we have all signals prefetched.
if (statusCode == PREFETCH_STATUS_OK) {
    // With all signals in place. Request Visit ID.
    [GAHCore requestVisitID:^(NSString *visitID) {
        [self processVisitIDResponse:YES value:visitID];
    } failure:^(NSInteger errorCode, NSString *errorMessage) {
        [self processVisitIDResponse:NO value:errorMessage];
    }];
}

// Make sure that we have all signals prefetched.
if (statusCode == PREFETCH_STATUS_OK) {
    // With all signals in place. Request Visit ID.
    GAHCore.requestVisitID({ (visitId: String?) in
        self.processVisitIDResponse(true, visitId)
    }) { (errorCode: Int, errorMessage: String?) in
        self.processVisitIDResponse(false, errorMessage)
    }
}

Clear transaction resources

This method is called after every transaction to clear the transaction resources used in Risk Management.

A transaction can be an action in the application such as Login or Add beneficiary.

Code placeholder for clear transaction resources

//Clear transaction resources
[GAHCore clearTransactionResources];

//Clear transaction resources
GAHCore.clearTransactionResources()

Stop prefetch signals

Stopping the prefetching signals results in the termination of the background process of storing values in the cache.

This method can either be called from a UI (main) or non-UI (background) thread.

Code placeholder for stop prefetch

//Stop signal Prefetch
[GAHCore stopPrefetchSignals];

//Stop signal Prefetch
GAHCore.stopPrefetchSignals()
