Luna PCIe HSM 7 Required Items

This section provides a list of the components you should have received with your Luna PCIe HSM 7 order. The specific items you received depend on whether you ordered a password-authenticated or a multifactor quorum-authenticated Luna PCIe HSM 7, and whether your order included a backup device or other options as described below.

Basic Luna PCIe HSM 7 Order Items

The standard items that you should have received as your basic order for a Luna PCIe HSM 7 are:

Qty Item
1

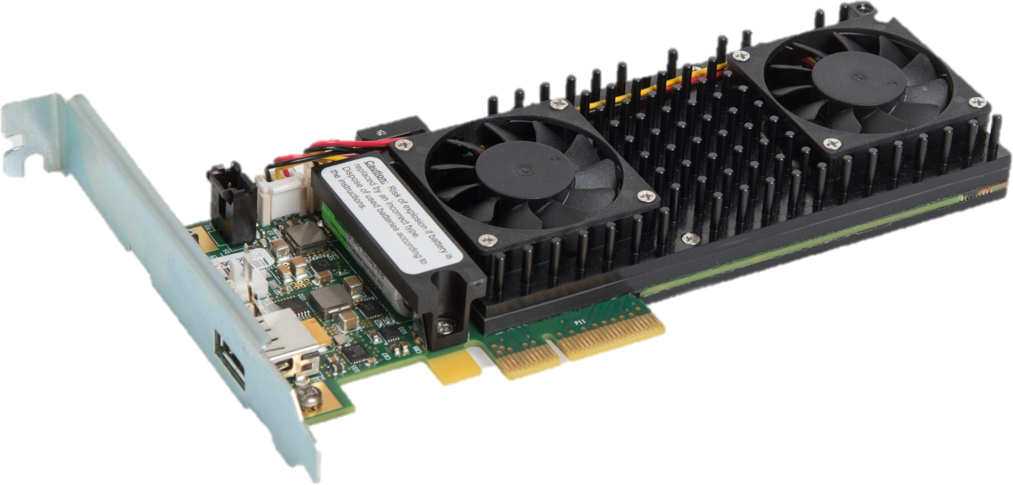

Luna PCIe HSM 7

The HSM comes fitted with a full-height mounting bracket.
1

Anti-Static Wrist Strap
1

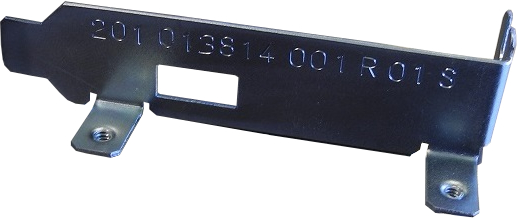

Half-height mounting bracket

Use this bracket if you need to install the Luna PCIe HSM 7 into a half-height slot.

Multifactor Quorum-Authenticated Luna PCIe HSM 7 Order Items

If you ordered a multifactor quorum-authenticated Luna PCIe HSM 7, you should have received some combination of the following items in addition to the items in the basic order.

Qty Item
1+

Luna PED

Your order should include at least one Luna PED device.

If you intend to back up your Luna PCIe HSM 7 to a Luna Backup HSM, then you require a Luna PED to connect to that Backup HSM.

If you intend to combine remote operation and backup, you might prefer to have a second Luna PED. It is possible to use a single Luna PED for both connections, and to simply change between local and remote mode as needed.

Note that you can use PED keys that you already own and use with other HSMs if appropriate. You should purchase the number you need for your own convenient operation, and for backup/standby units as your security policies might require.
1

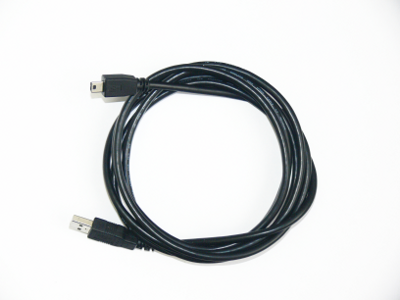

Luna PED cable

The Luna PED device connects to your HSM using a Type A to Mini B USB cable.
1

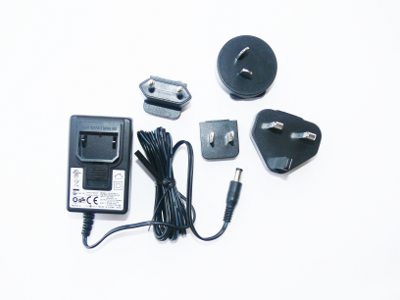

Luna PED Power Supply Kit *

If you ordered a Luna PED, your order should include a power supply kit with the appropriate connection for your region. The power supply is auto-sensing and includes replaceable mains plug modules for international use.
* If you received a USB-powered Luna PED (updated internal hardware, and Luna PED Firmware 2.8.0 or newer), it is powered via the USB connection and does not require a separate, external power supply; none is supplied.

Other Required Multifactor Quorum-Authentication Items

The following required items may be shipped with your Luna PED, or ordered separately.

Qty Item
1

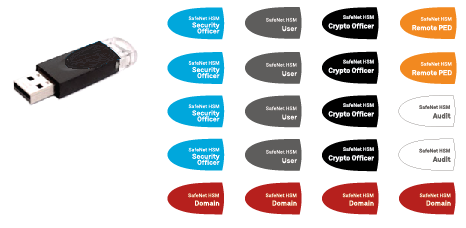

Set of PED keys and Labels

Your order may include a set of PED keys and peel-and-stick labels.

Optional Items

Your order may include a Luna Backup HSM 7.

Qty Item
1

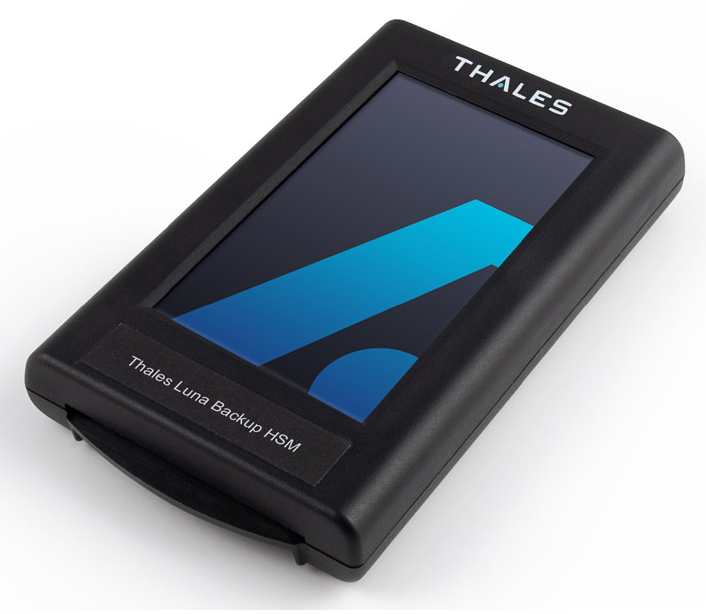

Luna Backup HSM 7

You can back up your selected Luna PCIe HSM 7 partition contents (root keys, certificates, other items) to a Luna Backup HSM. The Luna Backup HSM is suitable for off-site storage and for backing up multiple HSM partitions. It can back up contents of password-authenticated or of multifactor quorum-authenticated HSMs.

Refer to Luna Backup HSM 7 v1 or Luna Backup HSM 7 v2.
