Amazon Web Services Deployment
You can deploy a CipherTrust Manager image within Amazon Web Services (AWS).
Minimum Requirements
To deploy a CipherTrust Manager instance, the following minimum requirements apply:
System volume: 50 GB for evaluation, 100 GB for production
Memory: 16 GB
vCPUs: 2
NICs: 1
!!! note These minimum system requirements are for a system with light to moderate load. For applications that heavily load the system, additional memory and CPU allocation are required. The system volume holds all data as well as backups.
Provisioning the AMI
An AWS region-specific, and confidential Virtual CipherTrust Manager image (AMI) is obtained by provisioning. Provisioning places a CipherTrust Manager AMI in your target AWS account. Separate provisioning requests must be made if you need multiple CipherTrust Manager instances in one or multiple regions.
Use the SafeNet Cloud Provisioning System, to customize a CipherTrust Manager AMI for a specific region.
Note
Only authorized Technical Support Customer Portal users can access the SafeNet Cloud Provisioning System.
Steps to provision a Virtual CipherTrust Manager
Visit https://cps.cpl.thalesgroup.com/app to access the SafeNet Cloud Provisioning System Login page:
Enter your Gemalto Service Portal Username and Password, and click Login.
This will bring you to the following New Provisioning Request page:
Note
Notice the two tabs at the top of the page, New Provisioning Request tab, currently open, and Request List tab for checking on the status of your submitted requests.
Select the product CipherTrust Manager AWS and click Next.
You are then asked to select the product version:
Note
Generally, it is recommended that you select the latest version at the top of the list.
Select Select Product Version and click Next.
The following Provisioning Credentials screen is displayed:
Select your AWS Region and enter your AWS Account Number. Then click Submit.
An Image request created confirmation message is displayed with a Request reference ID as show here.
You will also receive a short 'do-not-reply' email from Gemalto.
Using the Requests List tab, you can track the request using the reference ID under the Request ID column. Initially the status shows pending, then it is changed to dispatched and finally it displays created.
After the image is provisioned, you will see your CipherTrust Manager AMI ID in the Request List table. You may need to refresh you screen to see the updated table.
You will also receive another 'do-not-reply' email with the CipherTrust Manager AMI ID. The provisioned AMI will then be shared with your AWS account for a minimum two weeks.
Deploying in AWS
This section provides the steps for deploying a Virtual CipherTrust Manager instance in AWS.
Prerequisites
A Virtual CipherTrust Manager AMI provisioned using the SafeNet Cloud Provisioning System.
If using a Windows client use PuTTY or similar utility to SSH to your CipherTrust Manager instance as KeySecure Administrator (ksadmin).
If needed, use PuTTYgen or similar utility to format the SSH Key Pair. RSA is the supported key algorithm. We recommend RSA 4096, with RSA 2048 as a minimum size for adequate security.
If using a Linux client use SSH to login as KeySecure Administrator (ksadmin).
To launch a CipherTrust Manager instance in AWS
Sign in to your AWS account at the AWS portal at: https://aws.amazon.com
In the Compute group, select EC2 service.
On the AWS top bar and to the right, make sure you select the AWS Region you provisioned for your AMI.
In the left pane, under the Images, select AMIs and search for the AMI (e.g. ami-1f6b5b60) that was provisioned for you by the SafeNet Cloud Provisioning System.

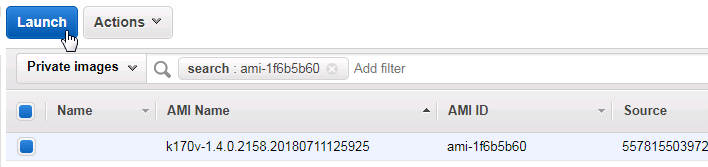

Select your image and then click on Launch.
In the Choose an Instance Type screen, choose a size that meets the minimum requirements and then select Next: Configure Instance Details.
In the Configure Instance Details screen,
Create a new Network and Subnet or select one that you have already created.
At the bottom of the screen there is a section Advanced Details.
Any information that you need configured before the first boot must be entered here in the user data area. See Plan Configuration Settings for Cloud Init.
Select Next: Add Storage.
In the Add Storage screen, select the desired Size (GiB).
Enter 100 GiB if this is for Production.
Enter 30 GiB if this is for lab use.
Select Next: Add Tags.
In the Add Tags screen, select Add Tag
Enter Tag: Name
Value: Something meaningful to the operator; for example "CipherTrust Manager for lab use"
Select Next: Configure Security Group.
In the Configure Security Group screen:
Create a new security group or re-use a previously created group.
Refer to Network Security Groups. Consider adding all of the recommended rules.
Note
To launch the CipherTrust Manager, you need at a minimum Port 22 inbound/outbound for ksadmin's SSH connection and Port 443 for an HTTPS connection to the GUI.
Select the Review and Launch screen.
In the Review Instance Launch screen:
Review your launch configuration settings.
Make any changes by selecting the Edit ... at the right of each section.
After your review, select Launch.

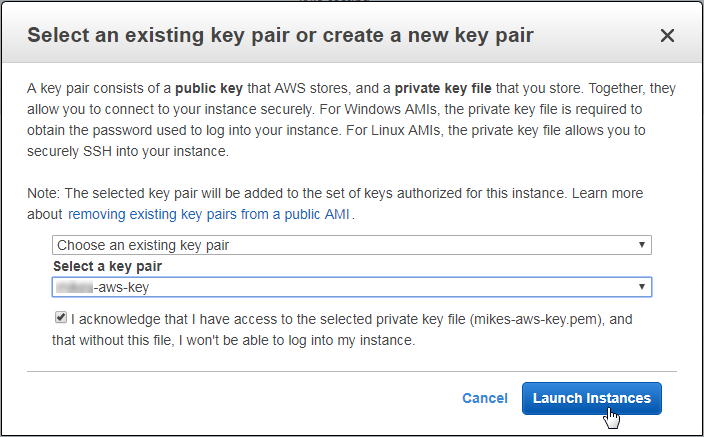

You are presented with this dialog box to select a key pair.
Select which Key Pair option to use. The key pair should be in Linux (PEM) format, not OpenSSH format. Valid options are:
Choose an existing key pair from the drop-down list. If your key pair is not on this list, you can import it here:
Services > EC2 > Network and Security > Key Pairs
Create a new key pair. (This option allows you to download your own key pair.)
After selecting the Key Pair, check off the acknowledge statement at the bottom of the dialog box, confirming that you have access to the selected private key file.
Warning
It is important that you have access to the key pair you select, otherwise you will not have permissions to perform administrator operations like performing upgrades, advanced logging or an appliance reset.
Select Launch Instances.
The Launch Status screen appears. You can review the launch process on this screen.
Note
It can take a several minutes for your instance to launch.
Select View Instances to view the state of your instance as it is being launched. You may need to search for the name of your instance in the Instances table if it is among many others.
At this point, if you wish to connect as System Administrator (ksadmin) to perform system level duties, duties such as performing network configurations, system upgrades, continue with the next step.
Note
Refer to Groups for a more detailed list of ksadmin duties.
Otherwise, browse to step 18 to connect to the CipherTrust Manager Web Page.

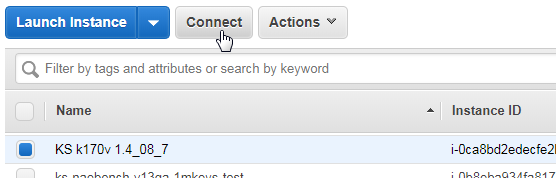

Select your instance in the table and then select Connect.

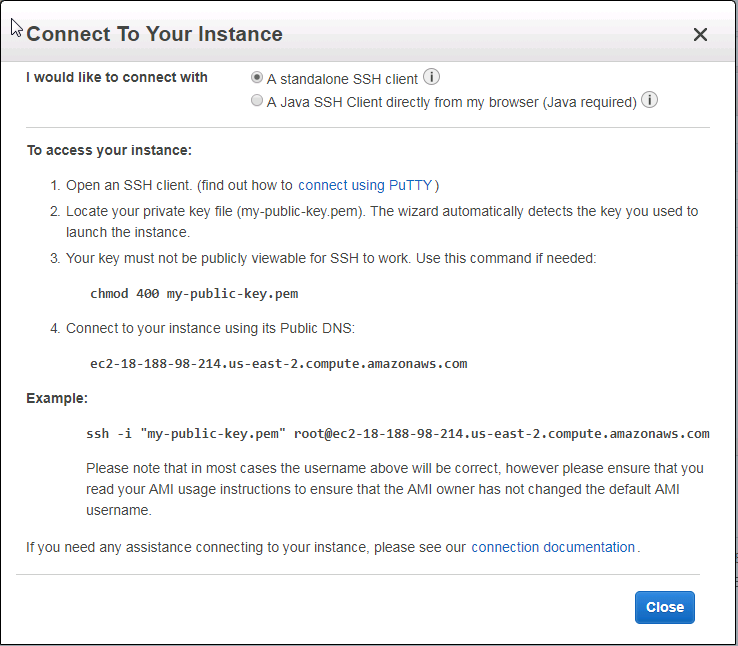

The Connect To Your Instance dialog box appears:
Copy the instance Public DNS string, for example: ec2-54-89-148-184.compute-1.amazonaws.com
If using PuTTY, begin a new session.

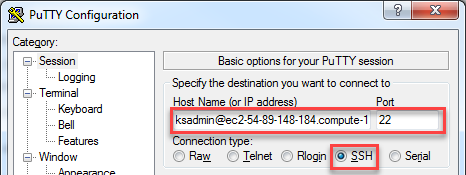

Paste the Public DNS in the Host Name (or IP address) field and preface this string with "ksadmin@".
Set the Connection Type to SSH.
In the Category pane:

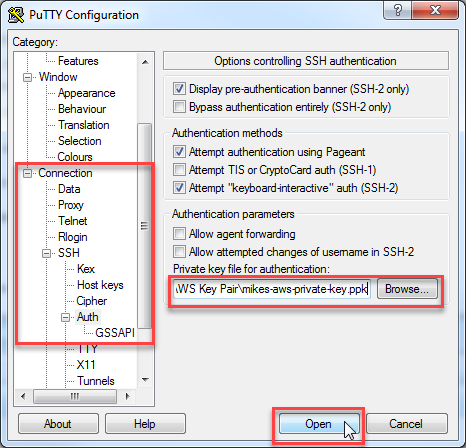

Select Connection > SSH > Auth.
Select Browse and navigate to the folder with your Private Key.
Select your Public Key file name. The file name and path is automatically places in the Private key file for authentication field.

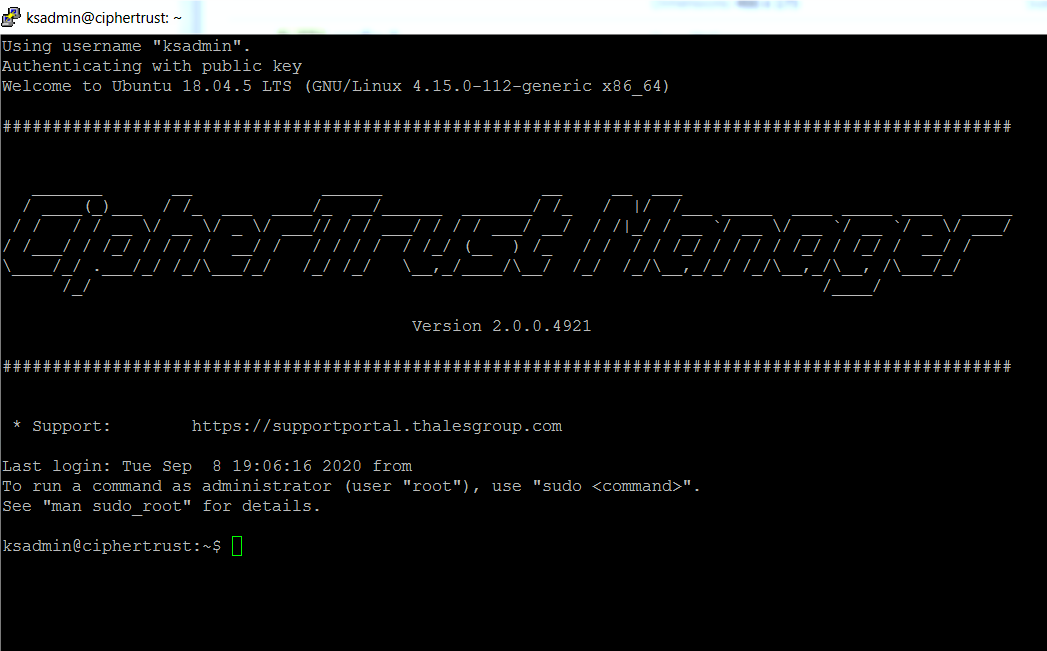

Select Open. The following ksadmin screen appears:
Note
If you are unable to connect to your instance using PuTTY, go to: https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/putty.html for further assistance.
Connect to the CipherTrust Manager Web Page.

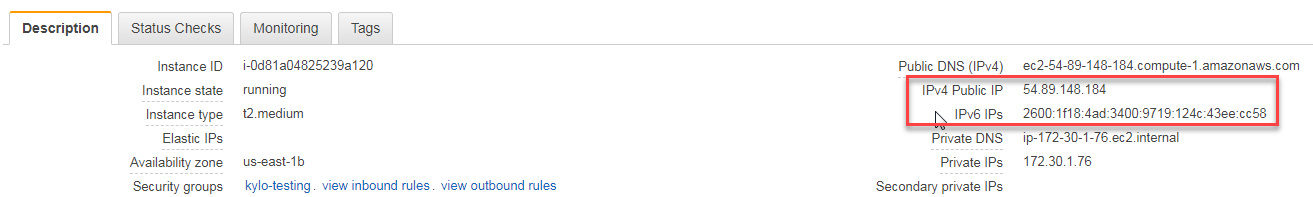

Copy the IPv4 Public IP or IPv6 IP address shown in the Instances > Description tab of your AWS instance.
Browse to HTTPS://
. The Log In screen appears.
Log in using the initial default credentials: Username = admin, Password = admin
The following notice is displayed:
Note
If the default credentials do not work, you may need to retrieve an autogenerated password, as described in Changing the Initial Password.
Enter a new password using this default Password Policy:
Min length: 8 Max length: 30 Min number of upper cases: 1 Min number of lower cases: 1 Min number of digits: 1 Min number of other characters: 1
A new Login screen appears.
Using your new password, log in again. The CipherTrust Manager Web Page appears.
Congratulations! You have successfully deployed your Virtual CipherTrust Manager instance.
Virtual CipherTrust Manager includes a 90 day trial license. To activate your instance with a term or perpetual license, see Licensing.
Enhanced Networking
The CipherTrust Manager AMI ships with Elastic Network Adapter (ENA) enabled. ENA provides high-performance networking on supported EC2 instance types. For more information visit https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/enhanced-networking.html.
