Deploy BYOK War File

The CADP for Java sfbyok.war file can be deployed on a web server. This article describes how to deploy the sfbyok.war file on a web server running Tomcat version 9.

Prerequisites

To deploy BYOK for AWS ensure that:

1. Tomcat version 9 or higher is installed.

2. Any of the supported Java version is installed on your machine. Refer to General system architecture for details.

   In case of Java 11 or higher, copy the following jar files to the Tomcat’s lib directory:

   • jaxb-api-2.3.1

   • jaxb-core-2.3.0.1

   • jaxb-impl-2.3.1

   • activation- 1.1.1

3. The /jre/lib/ext directory should not have the CADP for Java provider jar files.

Steps to deploy

1. Extract the file using any standard archive utility.

   Extracting the archive creates the following directory structure:



   For information on directory structure and its content, refer to Directory Structure.

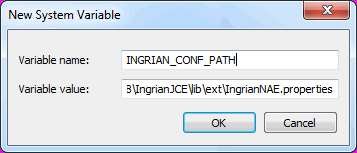

2. Configure the location of the CADP_for_JAVA.properties file from the \CADP_for_JAVA\lib\ext directory by creating an environment variable with the name INGRIAN_CONF_PATH as shown below.



   On Linux machines, run the following command to set the environment variable for INGRIAN_CONF_PATH:


   export INGRIAN_CONF_PATH=/


3. Copy the sfbyok.war file from the \CADP_for_JAVA\webservices\sfbyok directory to the %CATALINA_HOME%\webapps directory. If Tomcat is already running, it may automatically extract the contents to the %CATALINA_HOME%\webapps\sfbyok directory.

   If INGRIAN_CONF_PATH is not set, the CADP_for_JAVA.properties file stored at the %CATALINA_HOME%\webapps\sfbyok\WEB-INF\classes directory is used.

   Note

   The Tomcat server should be configured with a Fully Qualified Domain Name (FQDN) and SSL certificate for SSL communication. The Named Credential in Salesforce accepts only (FQDN) and SSL certificate. This step is applicable to Salesforce only.

4. Restart the Apache-Tomcat server. While deploying the sfbyok.war, if a folder with same sfbyok name already exists in the webapps folder, then delete the existing folder for clean deployment before starting the Tomcat server.

5. Edit the following parameters in the CADP_for_JAVA.properties file:

   NAE_IP.1	NAE_PORT	Protocol
   Client_Cert_Alias	Client_Cert_Passphrase	Key_Store_Location
   Key_Store_Location

Important Notes

• The Tomcat server must be restarted after making changes in the CADP_for_JAVA.properties file.

• The CADP for Java BYOK is supported in remote mode only.

• For logging, the log.file path parameter must be set in the application.properties file located in the %CATALINA_HOME%\webapps\sfbyok\WEB-INF\classes directory.
