Perform the below steps to validate the setup, configuration and end-to-end user authentication flow using Keycloak – Realm Login Page for SafeNet OTP Flow.

1. Navigate to Keycloak realm Login page. http(s)://<keycloak-server>:<port>/auth/realms/<realm-name>/account/#



2. Click Sign In.

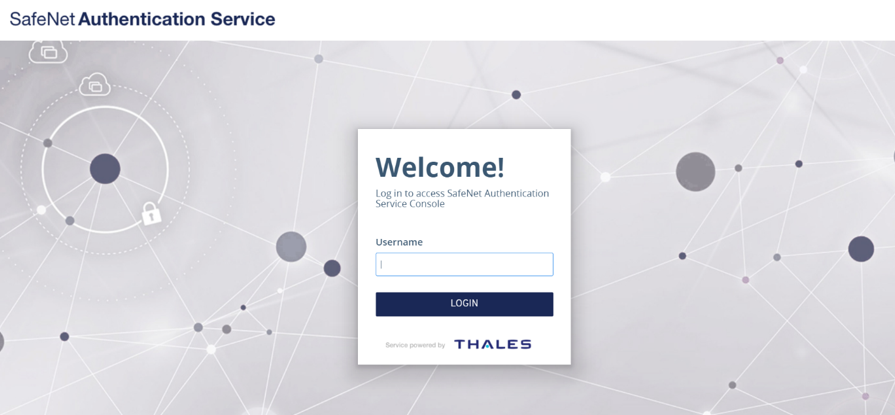

3. Enter the SAS Username and click LOGIN.

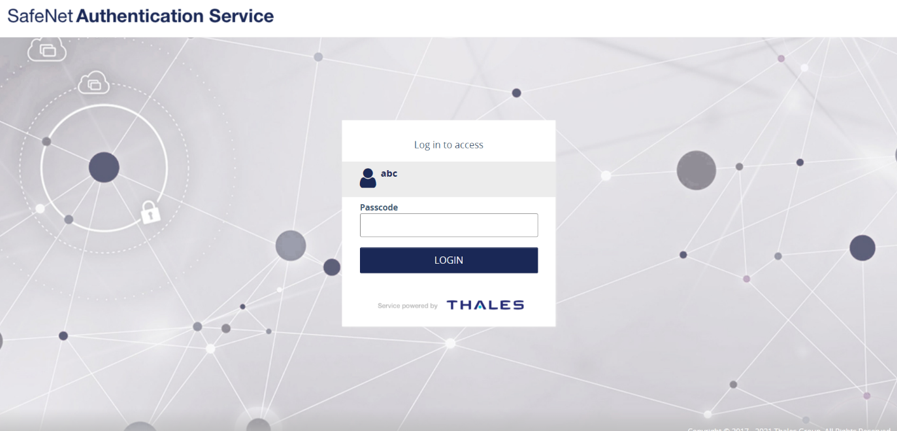

4. Enter the Passcode (static password, GrIDsure pattern, hardware token, SMS, MP+ token or OTP) and click on LOGIN.

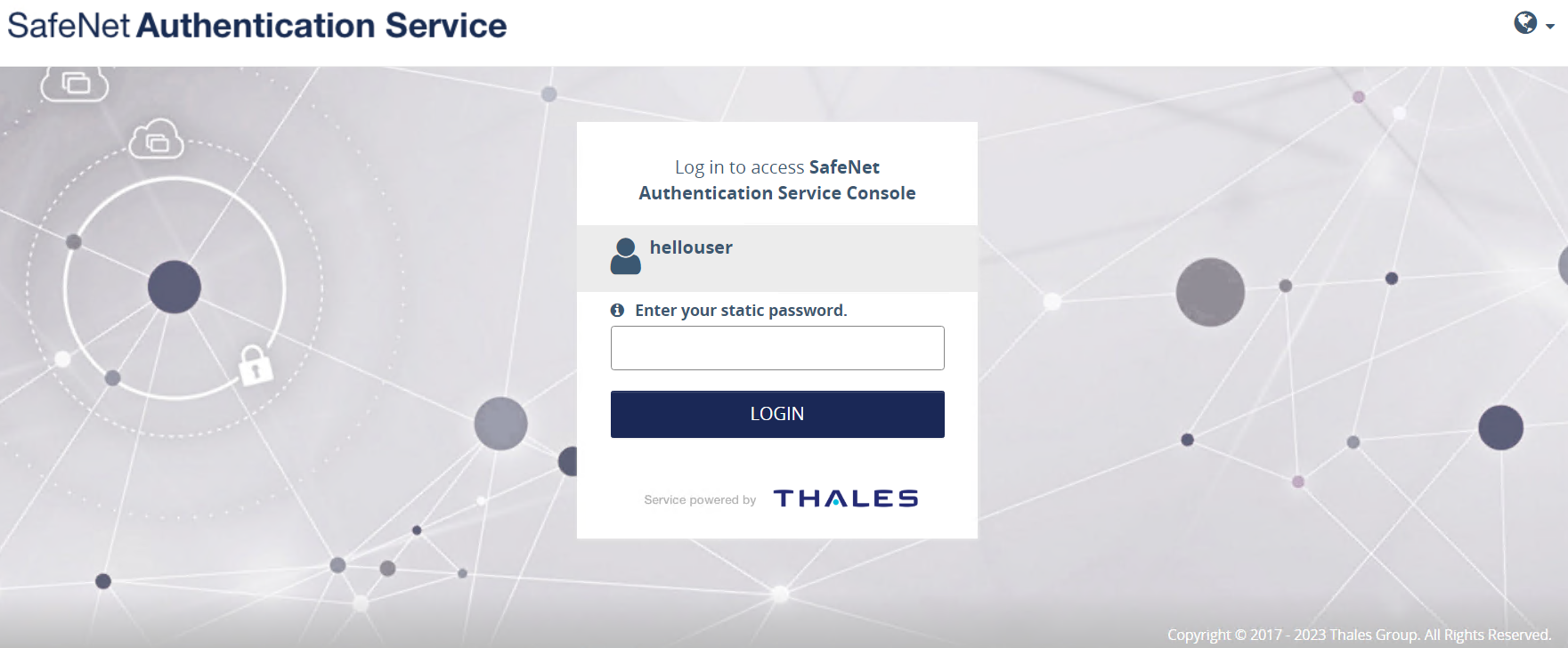

   If Passcode is not entered, and LOGIN button is clicked. In case of static password, the below screen is displayed:

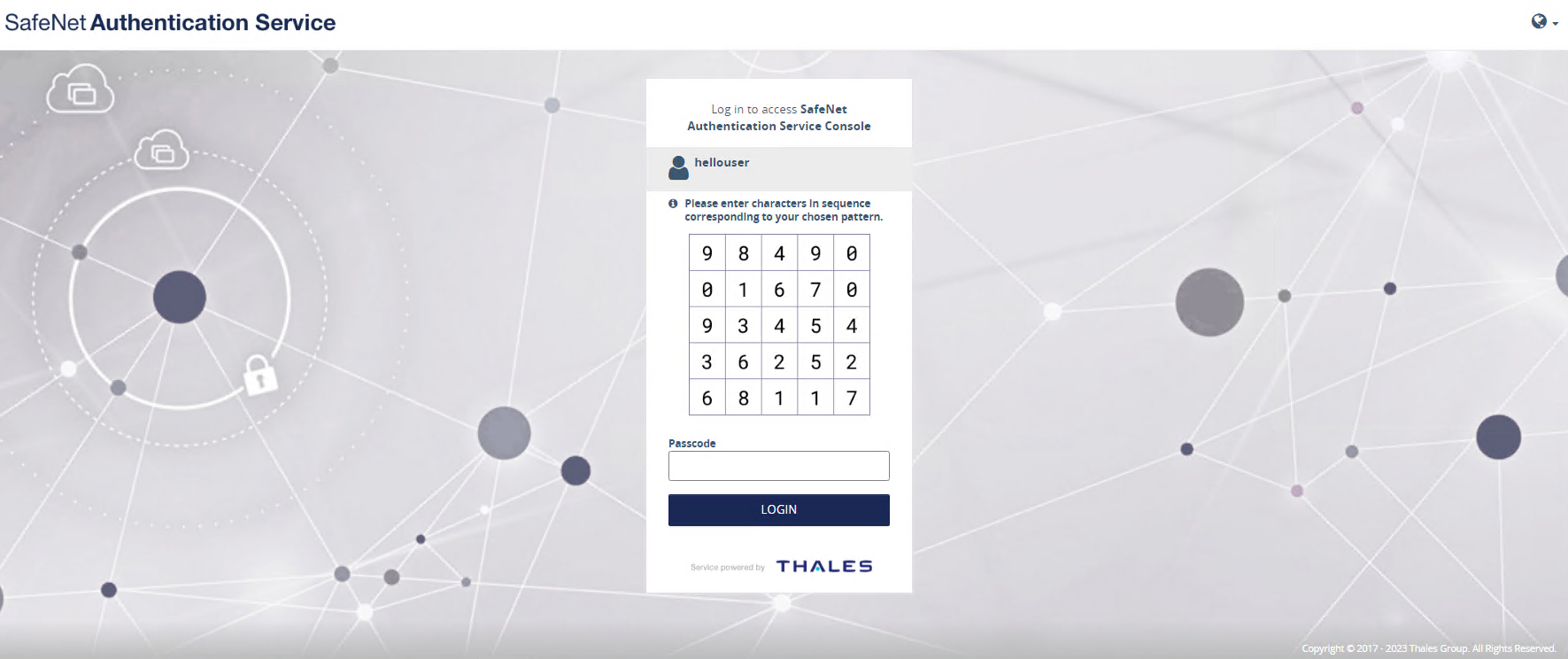

   If Passcode is not entered, and LOGIN button is clicked. In case of GrIDsure, the below screen is displayed:

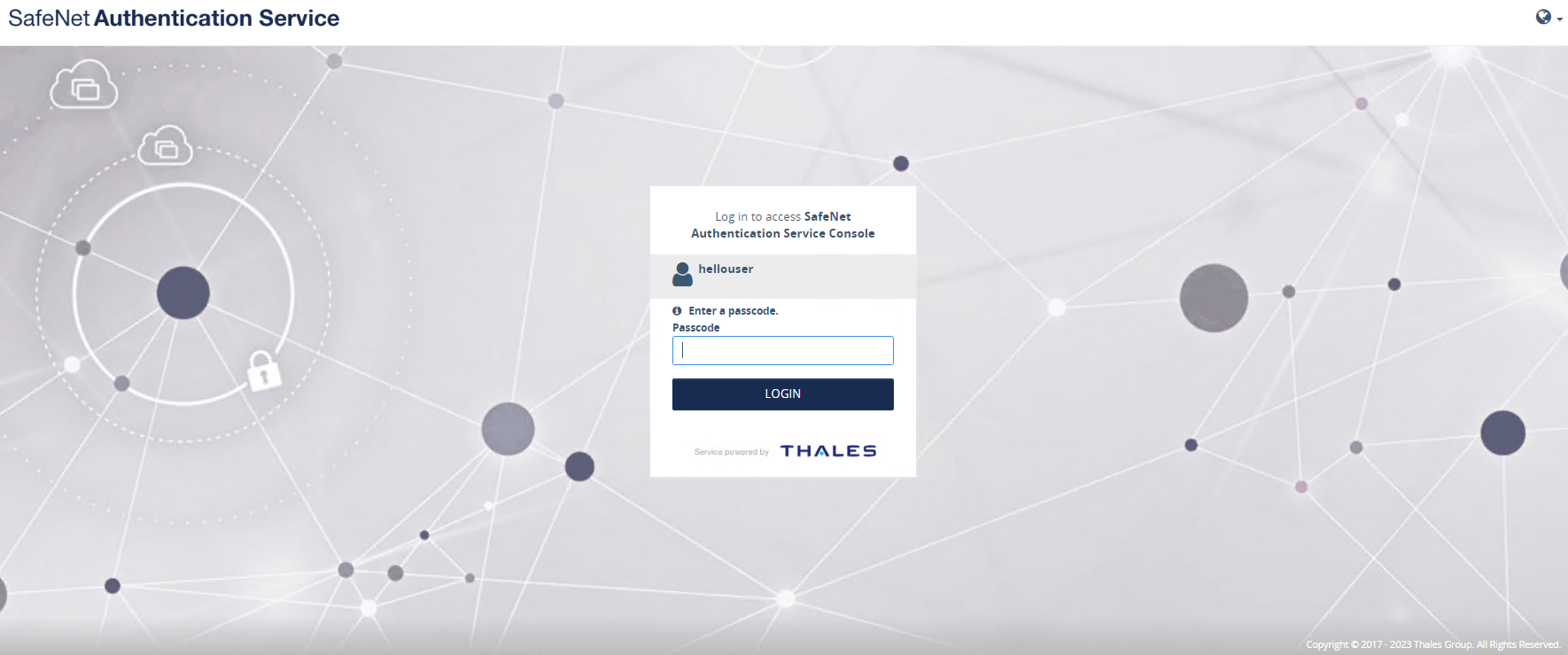

   If Passcode is not entered, and LOGIN button is clicked. In case of Hardware Token, the below screen is displayed:

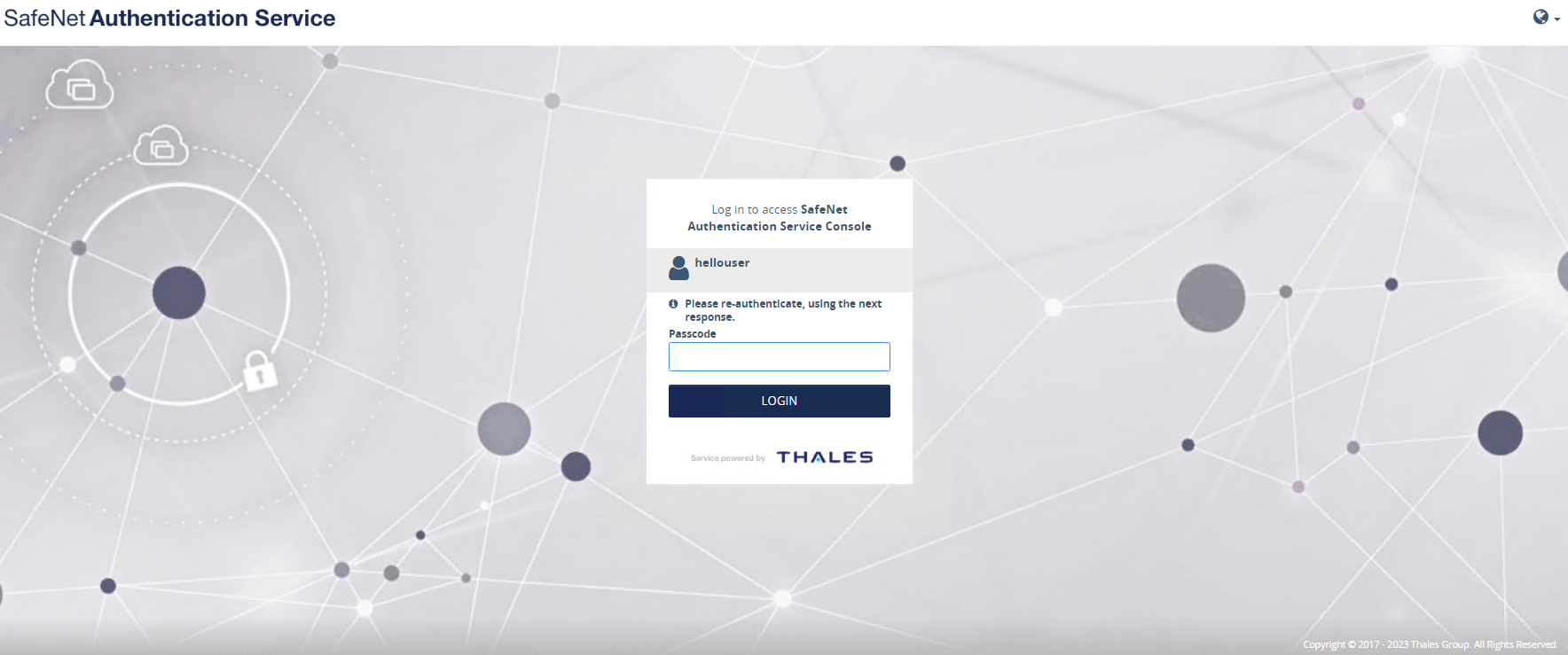

   Note: If the end user is logging into the portal for the first time. The SAS interface prompts for re-authentication.

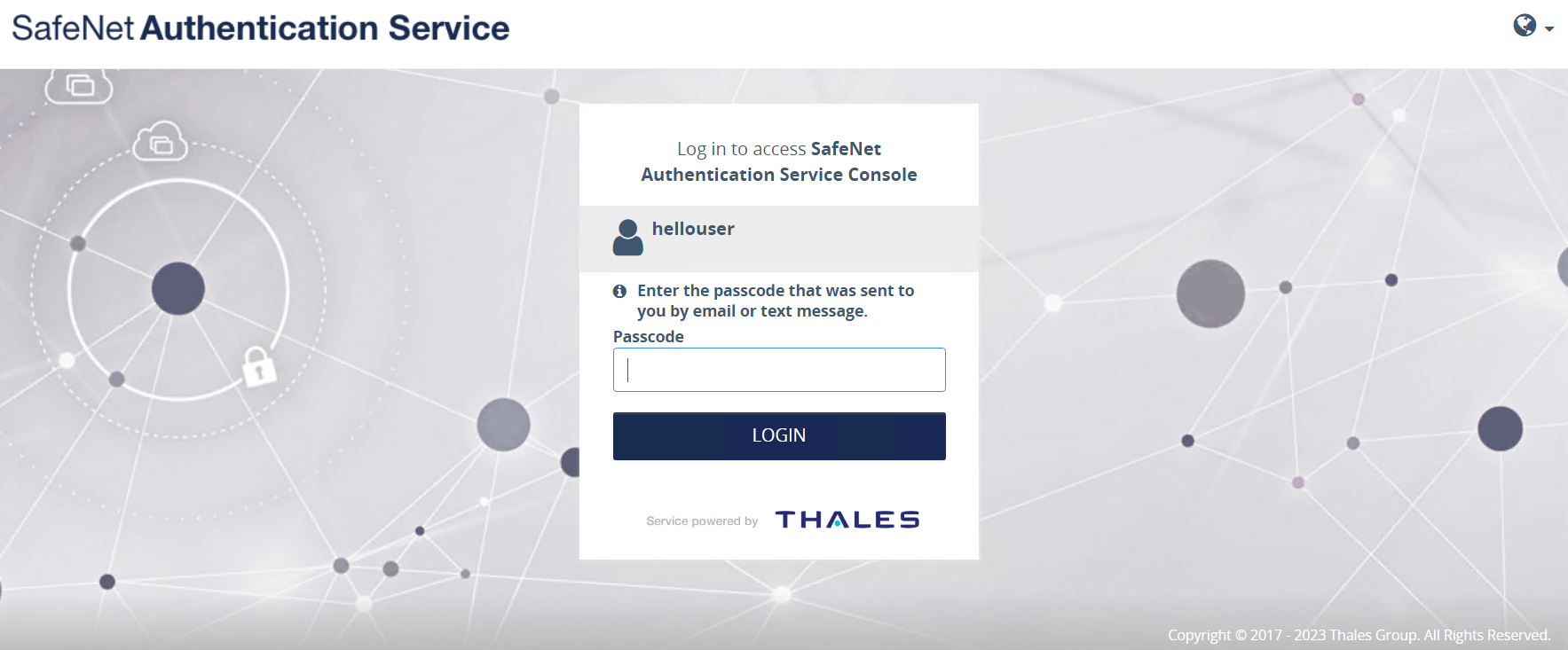

   If Passcode is not entered, and LOGIN button is clicked. In case of SMS, the below screen is displayed:

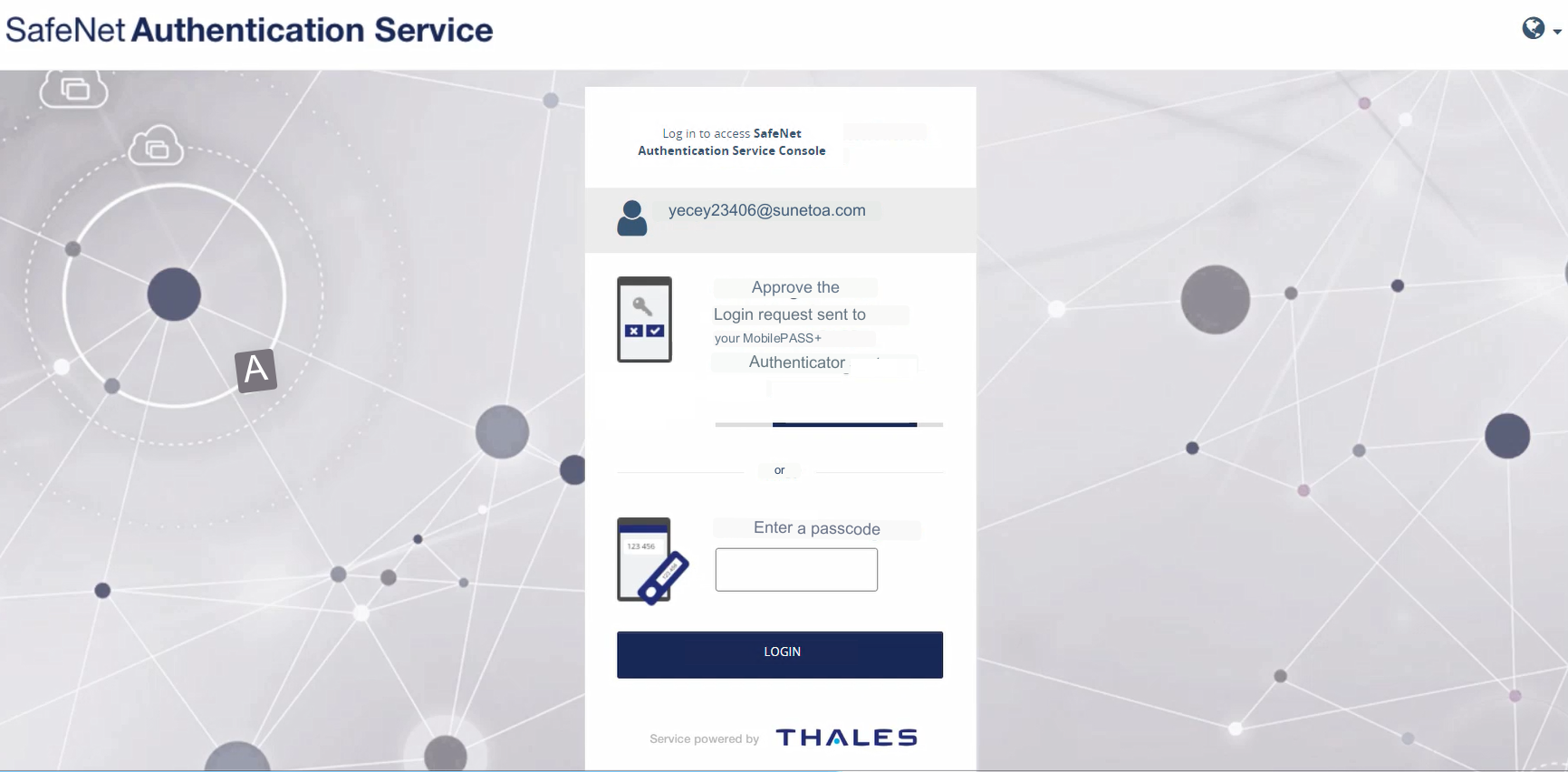

   If Passcode is not entered, and LOGIN button is clicked. In case of MP+, the below screen is displayed:

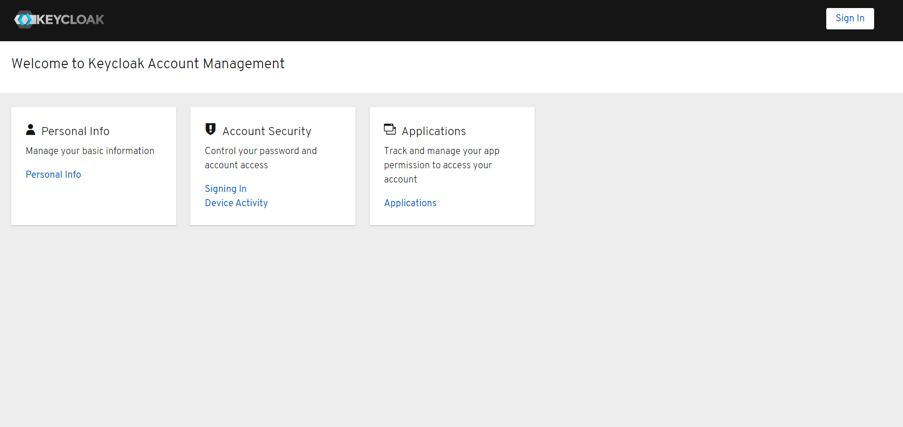

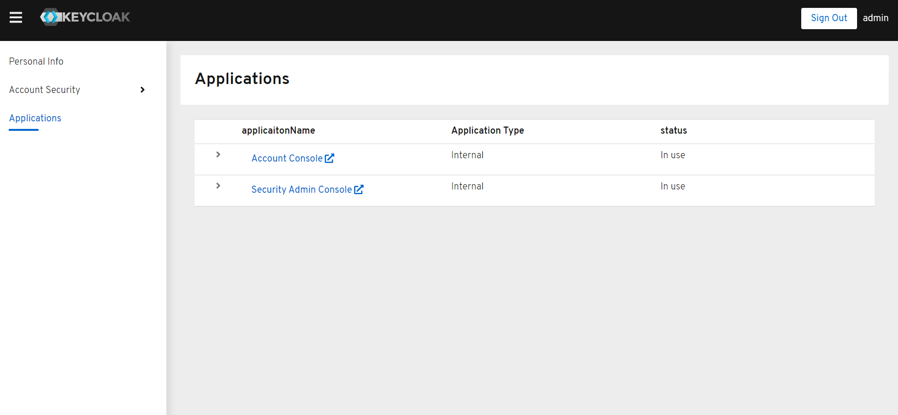

5. The Keycloak Account Management home page is displayed.
