Main gCTAdmin Interface

Following a successful login, the main user interface is displayed (Main gCTAdmin interface). The main interface shows the currently-selected HSM and a variety of its hardware settings.

In a host system containing multiple HSMs, other HSMs can be selected with File>Select Adapter. Choosing a different HSM will require a new login.

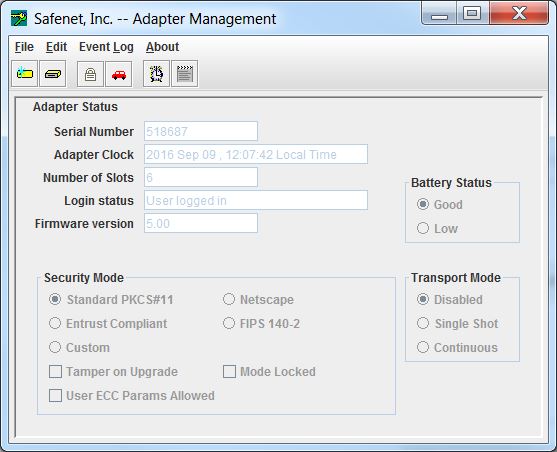

Figure 1: Main gCTAdmin interface

Toolbar Buttons

The buttons on the toolbar correspond to the following commands.

	Token Configuration
	Create Slots
	Security Mode
	Transport Mode
	Set the Clock
	View the Event Log
