Luna Backup HSM (G5) Required Items
This section provides a list of the components you should have received with your Luna Backup HSM (G5) order.
Luna Backup HSM (G5) Order Items
| Qty | Item |
|---|---|
| 1 |

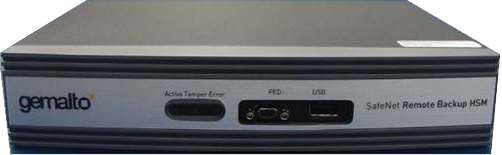

Luna Backup HSM (G5)
|
| 1 |
External Power Supply The Luna Backup HSM (G5) now ships with an external power supply. Previously, these HSMs relied on an internal power supply, requiring the HSM to be periodically powered on to recharge internal capacitors. Failure to charge the capacitors could result in an inability to power on the HSM. With the introduction of external power supplies, periodically powering on the HSM is no longer required. A failed external power supply can be replaced and there is no need to return the HSM for repair (RMA). NOTE External power supplies do contain capacitors which may be affected by extended periods of being unpowered, but they are more easily replaced in the event of failure. |
| 1 |
Power Supply Cord Your order should include one power supply cord for the Luna Backup HSM (G5). The actual cord received depends on the country for which you ordered the Luna Backup HSM (G5).
|
| 1 |
USB cable (USB A to USB mini B)
Your order should include one USB A to 5-pin (Mini-B) cable. |
Optional Items
Your order may also include the following optional item.
Luna Backup HSM (G5) Rack-Mount Shelf
The Luna Backup HSM (G5) rack-mount shelf (available by separate order) fits a standard 19-inch equipment rack, allowing you to install up to two Luna Backup HSM (G5) units side-by side in server-room racks. For office use, without rack mounting, Luna Backup HSM (G5) units can be placed on a desktop and are stackable.
