Create a Virtual Network Gateway
Follow the steps below to create a Virtual Network Gateway:
-

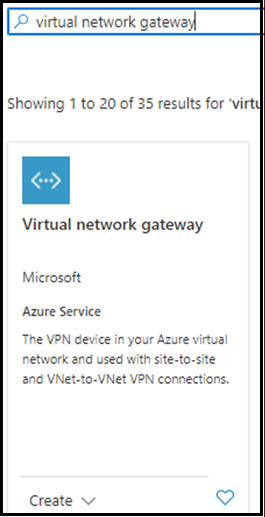

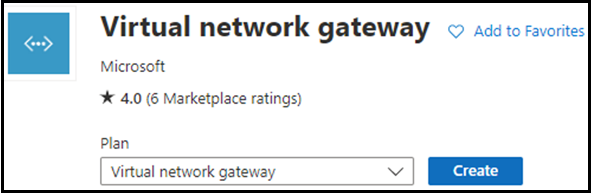

Search for “virtual network gateway” in the search bar and click Create.

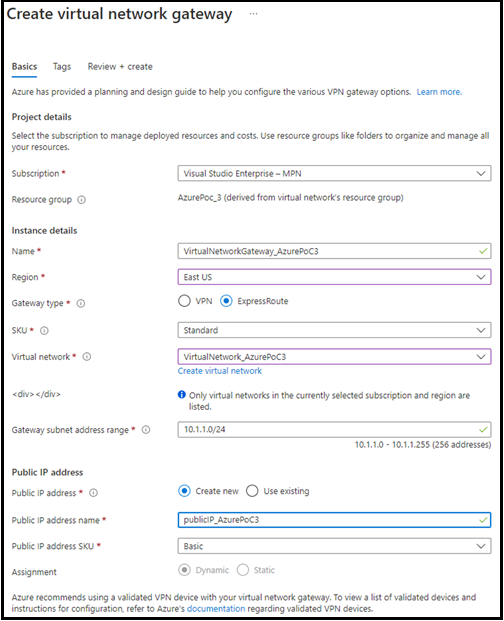

Fill-up the details in the Basics tab as shown in the image below.
-
Select Review + create to review the details and click Create.

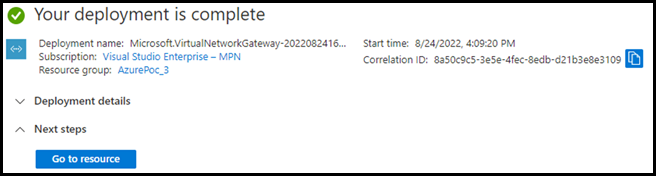

“Your deployment is complete” message displays.
-
Click Go to resource.
At this point, you must add a connection to Virtual Network Gateway.
-

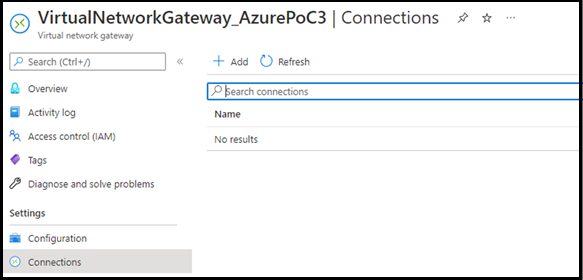

Select Connections under Settings in the left menu and click Add.
-

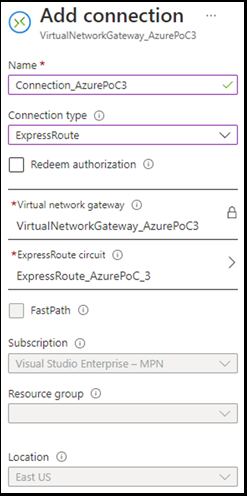

Select connection type as ExpressRoute.
-
Select appropriate Virtual Network Gateway and ExpressRoute circuit.
-
Click Ok.
-
Create a Virtual Machine and add it to the Express Route Virtual Network.
Use the virtual machine to connect to the payShield HSM to commission it using payShield Manager.
